Install and Update V700XXUCOA2 Android 2.2.1.1 on Galaxy Gear Smart Watch SM-V700 [Full Guide]

V700XXUCOA2 Android 2.2.1.1 Official Firmware for Samsung Galaxy Gear Smart Watch SM-V700 is now available and you can manually download it from here on ok android and also install it using our Complete Installation Guides that will help you installing Official Firmware Update, So if you want to install the Latest Official Firmware on your Samsung Galaxy Gear Smart Watch SM-V700, you must know that there are several ways to do that, so you can follow this installation guide that will help you installing your Official Firmware Update.

You can install and update V700XXUCOA2 Android 2.2.1.1 Official Firmware Update on your Samsung Galaxy Gear Smart Watch SM-V700 by following one of the following methods.

You Can choose one method only to get the update for your Samsung Galaxy Smart watch SM-V700 .

Read the following instructions carefully in our Complete Installation Guide to complete the Firmware Update process successfully .

Related :
- Install and Update R750DOMU1BOC1 Android 2.2.1.4 on Samsung Gear S SM-R750D [Full Guide]

- Install and Update R750PVPU1AOA7 Android 2.2.1.4 on Samsung Gear S SM-R750P [Full Guide]

- Install and Update Samsung Gear S Watch SM-R750B to R750BVJU1BOC2 Android 2.2.1.5 [Full Guide]

Note : ok android team are not responsible for any damage caused in your device , so be careful and do that in the right way and at your own risk. Also don't use this Firmware with any other model.

Before doing anything please do a backup for your important data and make sure that your device battery is fully charged or 75% at least.

Now we will show you How to install and update V700XXUCOA2 Android 2.2.1.1 on Samsung Galaxy Gear Smart Watch SM-V700 .

How to Install/Update V700XXUCOA2 Android 2.2.1.1 on Samsung Galaxy Gear Smart Watch SM-V700 with the official method (Recommended) :

Using Samsung Kies to check for Firmware Update for Gear Smart Watch SM-V700 and installing it :

- Run Kies on your computer and make sure that your Computer is connected to the Internet.

- Connect your Samsung Galaxy Gear Smart Watch to the USB port in your Computer via USB data transfer cable.

-Wait for your device to appear on the upper left side of the window.

- Click on the device name (SM-V700).

- A new window will appear on the right side of Kies.

- Under the “Firmware Information” tab, see if there are any updates available. If there are, you should see the message ‘New Firmware is available‘.

- If you want to install this update, press the ‘Firmware Upgrade‘ button.

- A new window will appear. The process contains more phases : (‘Download’ > ‘Upgrade’ > ‘Complete’).

- At the end of the installation process your device will reboot. Now you can disconnect the cable from the Computer and your phone .

- Click OK .

How to Install/Update V700XXUCOA2 Android 2.2.1.1 on Samsung Galaxy Gear Smart Watch SM-V700 with the manual method :

With this method we will install the Latest Official Firmware Update with Odin, so if you want to Install/Update V700XXUCOA2 Android 2.2.1.1 on Samsung Galaxy Gear Smart Watch SM-V700 with Odin follow the following steps :

(1) Download : V700XXUCOA2_V700OXACOA2_BTU

Details of V700XXUCOA2 Android 2.2.1.1 Official Firmware Update For Samsung Galaxy Gear Smart Watch SM-V700:

XXUCOA2 Firmware Details :

Model : SM-V700

Model Name : Galaxy Gear

Country : United Kingdom

Version : Android 2.2.1.1

PDA : V700XXUCOA2

CSC : V700OXACOA2

To download and Install/Update V700XXUCOA2 Android 2.2.1.1 on Samsung Galaxy Gear Smart Watch SM-V700 for another countries go to this page and select your country.

(2) Extract the V700XXUCOA2_V700OXACOA2_BTU.ZIP file to any place in your Computer.

(3) Download Odin 3.10.7 from : Download Desktop Odin for Windows [All Versions].

(4) Extract the Odin ZIP file to any place in your computer.

(5) Download and install Official Samsung ADB Drivers . If you already installed Samsung Kies then you already have the ADB Drivers , If not go to this page and download the Official ADB Drivers for your Samsung Galaxy Gear.

(6) Go to your Gear's settings and enable ADB/USB debugging.

Install and Update Samsung Galaxy Gear Smart Watch SM-V700 to V700XXUCOA2 Android 2.2.1.1 [Full Guide] - ok android

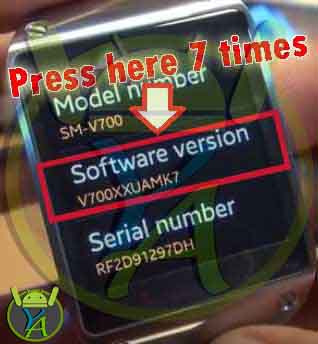

Note: Developer Options is hidden by default, so if you can't see the Developer Options in your device settings ,go to Settings > Gear info > About Gear > Press 7 times on Software Version to make Developer Options Visible to you . Now you can enable ADB/USB Debugging Mode in Developer Options .

Enable the Gear's Developer Options

(7) Turn off your Samsung Galaxy Gear and now you have to enter Download Mode .

-To enter Download Mode press and hold : " Power Button " you will see the Power off and Restart options showed on the screen , Keep holding on the power Button until you see the "Samsung Galaxy Gear" logo and you will find under it "Rebooting" word as shown in the following picture, when you see that, press on the power button 5 times and you will see another screen showed, then press on the power button one time to select "Download".

Press 5 times on Power button when you see this screen

Press one time on Power button to select Download

-When you selected the Download Option Press and Hold Power Button for 3 seconds to enter "Download Mode" .

(8) Start Odin from your Computer ( You Need To Run Odin As Administrator ) .

(9) Connect your Samsung Galaxy Gear via USB data transfer cable.

(10) You will see in Odin a section called ID:COM (on the left upper side of the window). The blank space under it will turn blue if your device is recognized (If the phone is not recognized make sure you have installed the ADB/USB Drivers) .

(11) Check "AP / PDA" box and click on "AP / PDA" and add the V700XXUCOA2_V700OXACOA2_BTU.tar.md5 file from the V700XXUCOA2_V700OXACOA2_BTU.ZIP extracted folder.

(12) Important !!! Do not place anything under the PIT section and make sure that “Re-partition” is not checked. (On the left side you will see Re-partition under the Option tab or on PIT tab for new versions of Odin).

(13) Make sure that you only checked this options on Odin (Auto Reboot , F. Reset Time ) , See the image below .

(14) When the V700XXUCOA2_V700OXACOA2_BTU.tar.md5 file is loaded you can press Start to begin the Firmware Installation Process.

(15) Don’t move or touch the USB Cable while the Firmware is being Flashed.

(16) Finally you will see a message saying ‘PASS” on a green background as the shown in the below image. This means that the Firmware Update is successfully installed. Your device should reboot now and run on the new Firmware.
